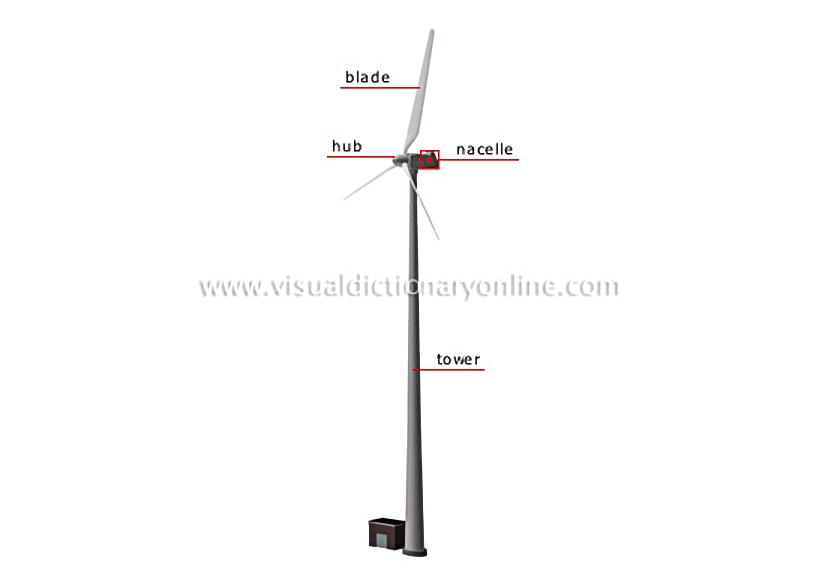

horizontal-axis wind turbine

The most common type of wind turbine; its axis positions itself in the direction of the wind.
horizontal-axis wind turbine 						Part of the rotor to which the blades are attached; it turns the low-speed shaft.				  							Metal structure that encloses and protects the main mechanical elements of the wind turbine (including the gearbox and the alternator).												Aerodynamic part that is attached to the hub; the force of the wind causes it to rotate to drive the rotor.				  							Tower that reaches 260 ft in height; it supports the nacelle and rotor and houses the electric cables.

See Also


production of electricity from wind energy

nacelle cross-section

hub

Part of the rotor to which the blades are attached; it turns the low-speed shaft.

nacelle

Metal structure that encloses and protects the main mechanical elements of the wind turbine (including the gearbox and the alternator).
nacelle cross-section
nacelle cross-section

blade

Aerodynamic part that is attached to the hub; the force of the wind causes it to rotate to drive the rotor.

tower

Tower that reaches 260 ft in height; it supports the nacelle and rotor and houses the electric cables.
