rotary engine cycle

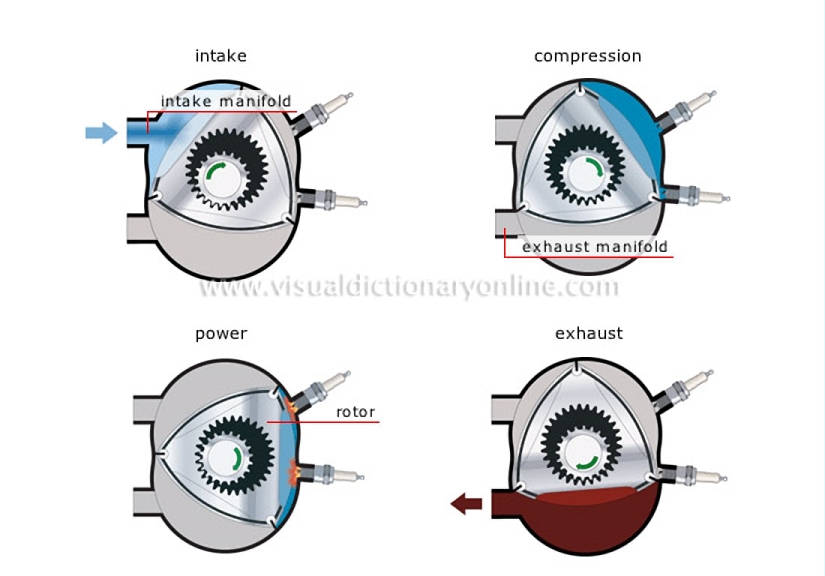

Rotary engine: combustion engine in which the combustion chamber is divided by a rotor into three turning parts of unequal volume.

intake

The air/fuel mixture enters the cylinder through the intake manifold; the rotor’s motion forces it into the next chamber.

intake manifold

Passages through which the air/fuel mixture enters the cylinder.

power

When the compression level is reached, the spark plugs produce sparks that ignite the air/fuel mixture.

rotor

Triangular piston turning eccentrically around an axle and transmitting a rotational motion directly to the crankshaft.

exhaust

In the passage before the exhaust manifold, the burned gases are expelled by the rotor.

compression

The rotor’s rotation reduces the volume in the chamber and compresses the mixture.

exhaust manifold

Pipe through which the burned gases are expelled from the cylinder.
