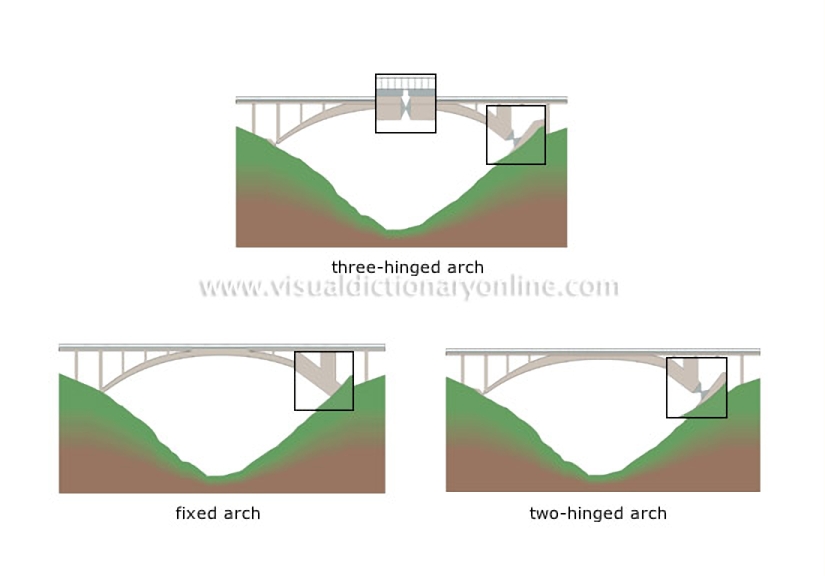

examples of arches

The concept of the arch varies in relation to the way it absorbs and transfers the roadway’s weight to its support points.

three-hinged arch

Arch with three roller joints: one at each end and one at the center.

two-hinged arch

Arch whose ends rest on an abutment attached by a roller joint.

fixed arch

Nonarticulated arch, embedded in each of its supports.
