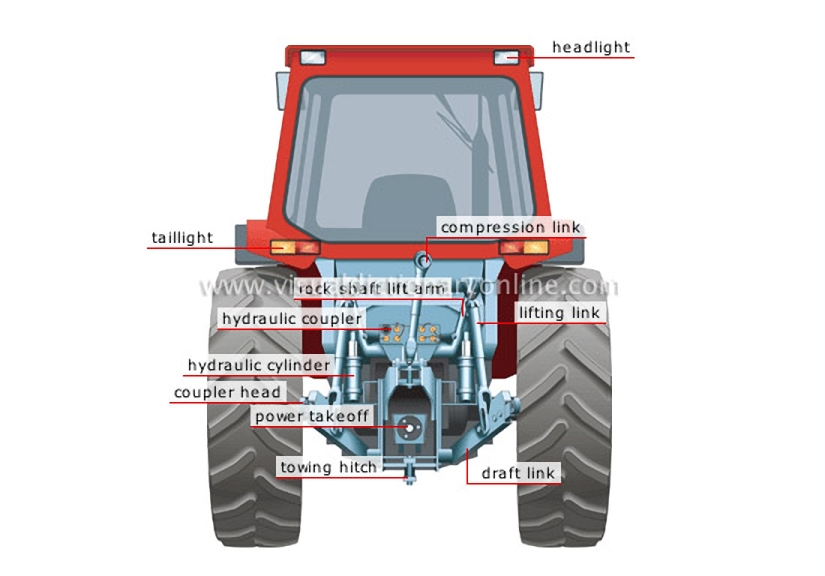

TRANSPORT & MACHINERY :: HEAVY MACHINERY :: TRACTOR :: TRACTOR: REAR VIEW image

The back end of the tractor is fitted with the equipment necessary to haul farm equipment or supply mechanical power to it.

Lamp that illuminates automatically when the front lights are on and shines more brightly when the operator steps on the brake pedal.

Device for attaching the coupler-head ring of a towed piece of agricultural machinery.

Bar with a coupler head for towing.

Mechanism consisting of a grooved shaft that uses the engine’s power or the tractor’s movement to drive a tool or equipment being towed.

Part adjustable to several positions that connects the draft link to the rock shaft lift arm.

Linking device between the tool and the draft link.

Hydraulically powered device made up of a cylinder and a piston, which drive the draft link.

Device for attaching the hydraulic hoses so that power can be transmitted to the attached tool.

Lamp on the rear of the vehicle that illuminates the work area.

Bar fastened to a tool that is coupled to the draft link to prevent it from tipping up or down.

Part controlled by the hydraulic cylinder that raises and lowers a tool by means of the lifting link and the draft link.
