SCIENCE :: MEASURING DEVICES :: MEASURE OF ANGLES :: THEODOLITE image

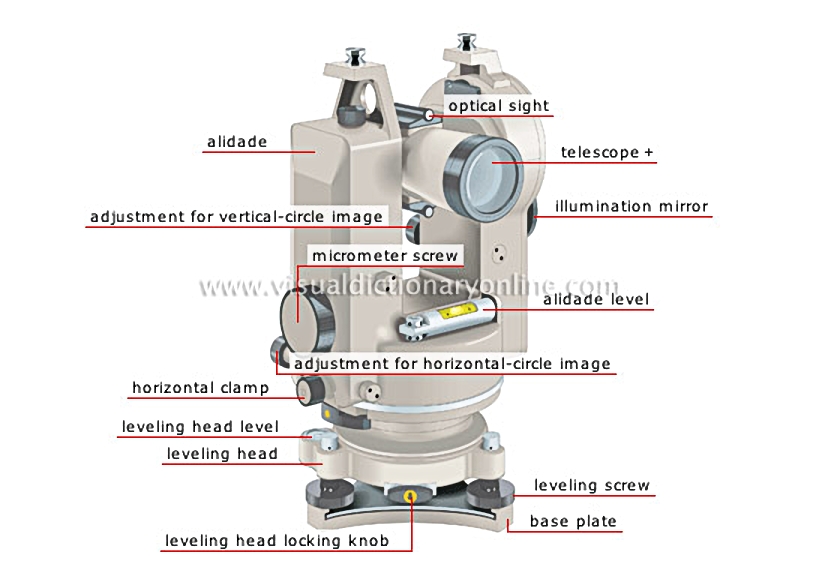

Sighting instrument that is used especially in astronomy, geodesy and navigation for measuring horizontal and vertical angles.

Transparent tube that contains liquid and an air bubble; it serves as a guide for positioning the alidade on the vertical axis.

Adjustable polished glass surface that reflects light onto the circles so that the angles can be read.

Platform serving as a support for the theolodite.

Knob that locks the alidade to prevent it from rotating.

Knob that locks the alidade to the leveling head.

Transparent tube that contains liquid and an air bubble; it serves as a guide for positioning the leveling head on the horizontal axis.

Plate to which the leveling head is attached by means of three leveling screws.

Screw that adjusts the theodolite’s leveling head level on the horizontal plane.

Optical instrument composed of several lenses; it can be adjusted in the horizontal and vertical planes and is used to observe distant objects.

Device with an eyepiece that precisely aims the telescope at the target whose angles are to be measured.

Knob that adjusts the sharpness of the image of the horizontal circle (graduated from 0° to 360°) in order to read the angles on the horizontal axis.

Knob that adjusts the micrometer to give a very precise reading of the circles’ measurements.

Knob that adjusts the sharpness of the image of the vertical circle (graduated from 0° to 360°) in order to read the angles on the vertical axis.

Part of the theodolite that rotates on a vertical axle to measure angles by means of the telescope.
