examples of fittings [1]

Fittings are used to join two or more pipes, a pipe to a device, or a pipe to a cap or plug.

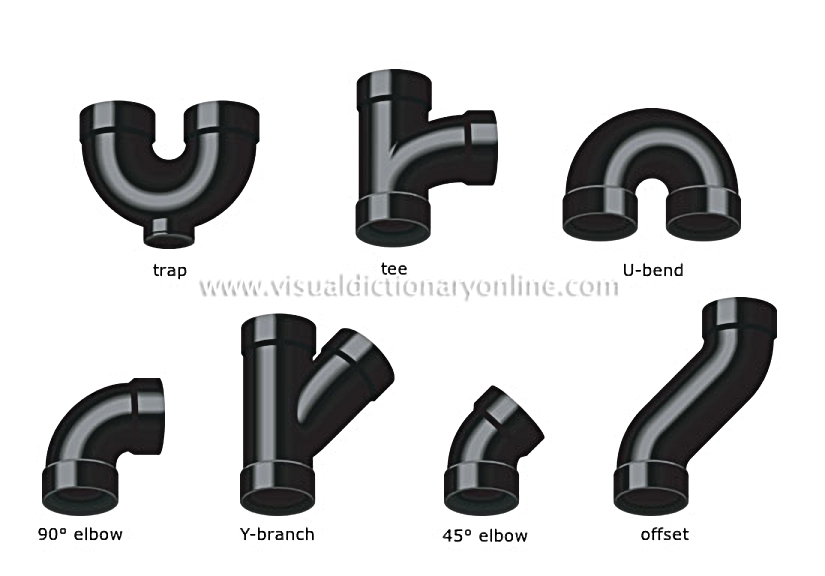

examples of fittings [1] Fitting joining two pipes so that the pipe can bypass an obstacle. Fitting joining two pipes in order to change their direction by 180°. U-shaped pipe beneath a fixture containing a quantity of water to prevent sewage gases from escaping. Fitting joining three pipes, one of which is oblique to the other two. Fitting joining three pipes, one of which is perpendicular to the other two. Fitting for joining two pipes in order to change their direction. Fitting for joining two pipes in order to change their direction by 45°.

offset

Fitting joining two pipes so that the pipe can bypass an obstacle.

U-bend

Fitting joining two pipes in order to change their direction by 180°.

trap

U-shaped pipe beneath a fixture containing a quantity of water to prevent sewage gases from escaping.

Y-branch

Fitting joining three pipes, one of which is oblique to the other two.

tee

Fitting joining three pipes, one of which is perpendicular to the other two.

90° elbow

Fitting for joining two pipes in order to change their direction.

45° elbow

Fitting for joining two pipes in order to change their direction by 45°.
