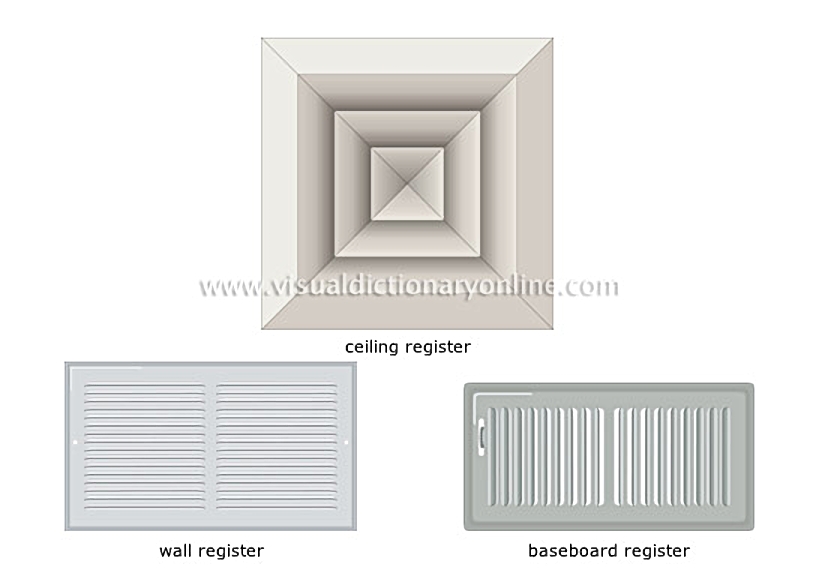

types of registers

Registers are located at the ends of the ducts and are fitted at the bottom of a wall, in a floor or near the ceiling.
types of registers Grill at the end of an air-return duct, which returns a room’s air to the furnace. Grill at the end of a duct through which a room’s air is drawn to mix it with the forced hot air. Adjustable grill located at the end of a duct through which hot air is distributed throughout a room.

wall register

Grill at the end of an air-return duct, which returns a room’s air to the furnace.

ceiling register

Grill at the end of a duct through which a room’s air is drawn to mix it with the forced hot air.

baseboard register

Adjustable grill located at the end of a duct through which hot air is distributed throughout a room.
