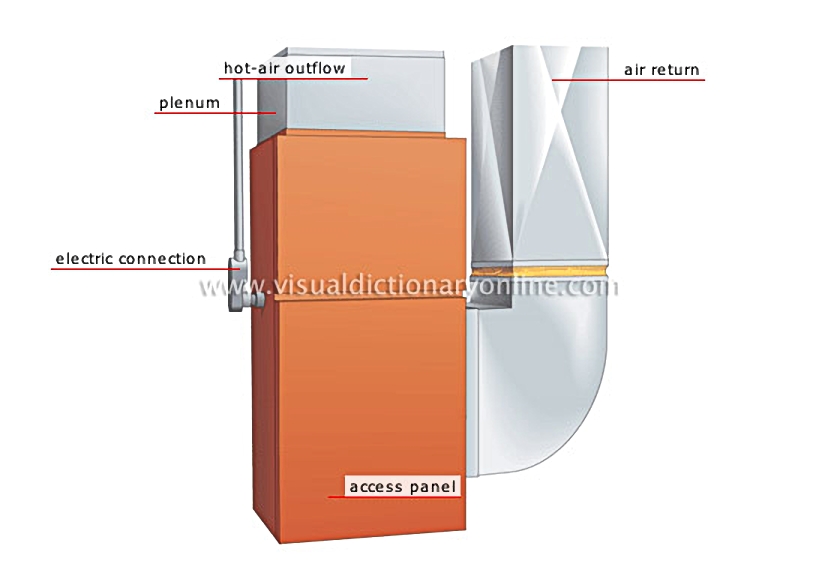

electric furnace [1]

Device using electricity for creating heat and blowing it through the duct system.
electric furnace [1] Removable panel for accessing the furnace’s components. Device connecting the electric furnace to the dwelling’s electric system. Joining duct between the furnace and the hot-air distribution system. Duct directing air from a room back to the furnace to be reheated. Duct directing hot from the furnace to the rooms.

access panel

Removable panel for accessing the furnace’s components.

electric connection

Device connecting the electric furnace to the dwelling’s electric system.

plenum

Joining duct between the furnace and the hot-air distribution system.

air return

Duct directing air from a room back to the furnace to be reheated.

hot-air outflow

Duct directing hot from the furnace to the rooms.
