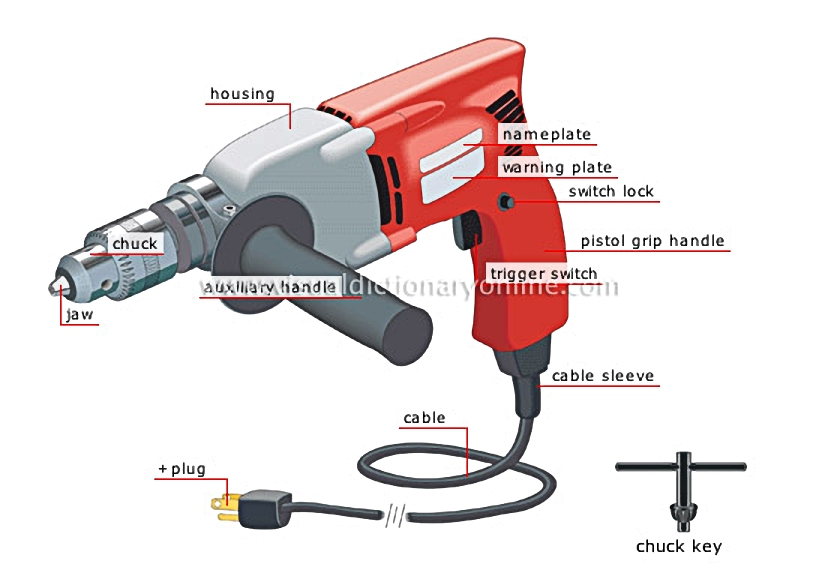

electric drill

Portable electric tool using variable-speed rotation to pierce holes and to drive drills and bits.

jaw

The parts of the chuck that grip the tool to keep it firmly in place.

plug

cable

pistol grip handle

Part shaped like a pistol grip so the wrist remains straight while holding the tool.

auxiliary handle

Tubular handle providing a firm grip and stabilizing the tool while drilling.

chuck

Device with jaws for attaching the bit or drill to the tool.

cable sleeve

Protective casing around the cable to avoid twisting and prevent wear.

trigger switch

Connection mechanism for starting or stopping the tool by squeezing with the finger.

switch lock

Device locking the switch in position to keep the saw working for a prolonged period.

housing

warning plate

Plate providing certain safety precautions to avoid injuries caused by misuse of the tool.

nameplate

Plate showing the name of the manufacturer, the serial number of the device and certain technical characteristics (tension, power, etc.).

chuck key

Part for tightening and loosening the chuck’s jaws.
